The DOM & Assistive Devices

Table of Contents

• Accessibility overview
  • How we follow the WCAG guidelines
• Assistive Devices
• The DOM API
  • WAI-ARIA
  • When to use ARIA
  • What ARIA attributes should I use?
• Making content accessible
  • Page titles
  • Headings
  • Alt text
  • Transcripts and captions
  • Beware things that look like text
  • ASCII
  • Links
  • Semantic HTML
  • Showing & hiding
  • Mobile/touchscreens
• Accessibility workflow
• Auditing

Accessibility overview

Accessibility is both a philosophy, and a legal requirement.

Philosophy: universal design, removing barriers and creating equity.

Law: The Access for Ontarians with Disabilities Act, in accordance with the Canadian Charter of Rights and Freedoms, mandates a level of WCAG compliance.

A few things I think about
when I think about web accessibility:

• The website's user interface is not the users' user interface.
• The whole point of the internet is interoperability.
• Whether or not you think people are a good thing, our forté as a species is not in individuals, but in being a group.
• I frankly don't care if people are productive. Putting up barriers is for jerks.
• A thing you can tell your boss: why do you hate money?

How we follow the WCAG guidelines

WCAG compliance mandates:

• semantics,
• proper source order,
• content considerations,
• text alternatives to visual information,
• accommodations for colour-blindness and low visual acuity,
• keyboard-only functionality, and
• the use of the WAI-ARIA specification.

Over the next couple weeks, we'll talk about how we accomplish each one of these things, but most of it is pretty simple: use html as it was intended, don't limit the user's choice of input device, and don't rely solely on what's visually shown to convey any information.

Before we talk about exactly how we avoid putting up barriers, let's talk about the different ways people are going to access your content.

Assistive Devices

People are accessing your web content with assistive devices. The beauty of writing your code to standards is you don't need to know which devices.

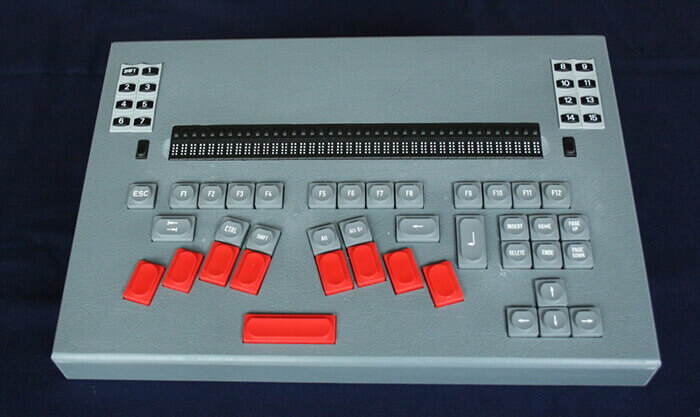

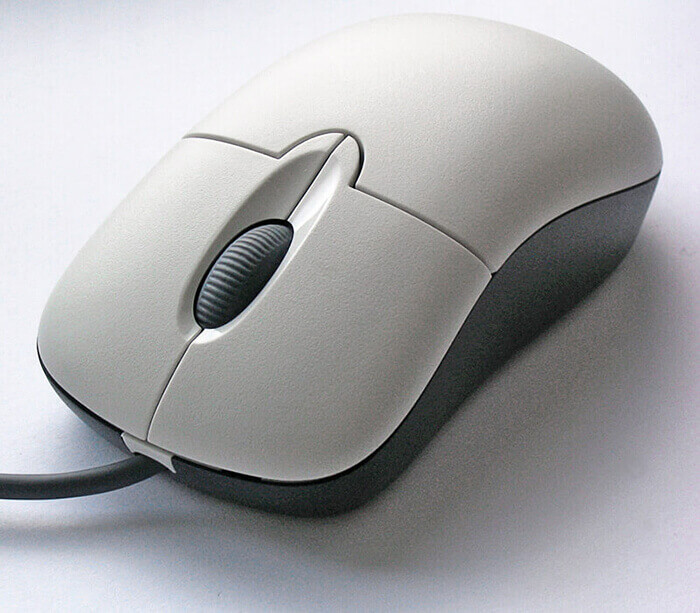

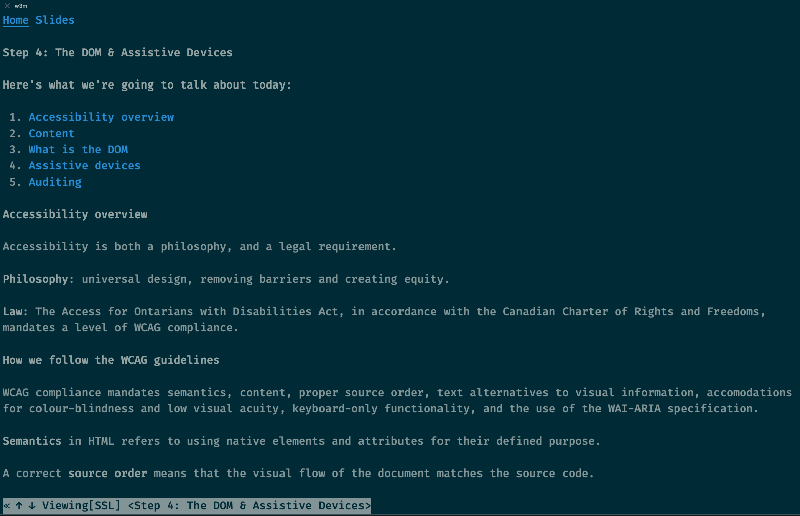

It could be this one…

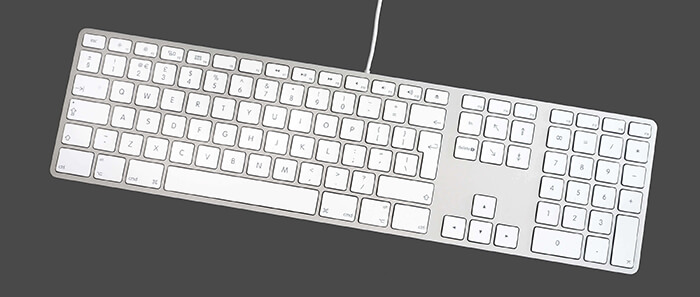

…or this one

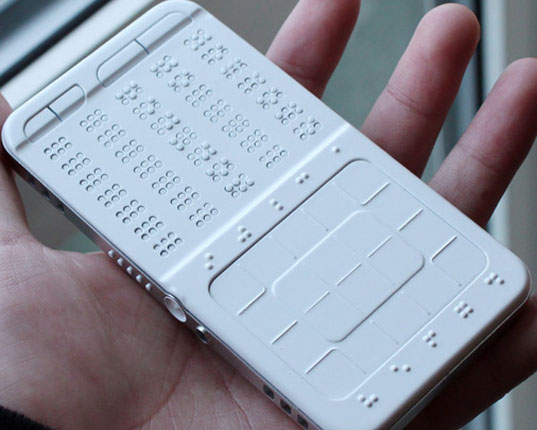

…or this one

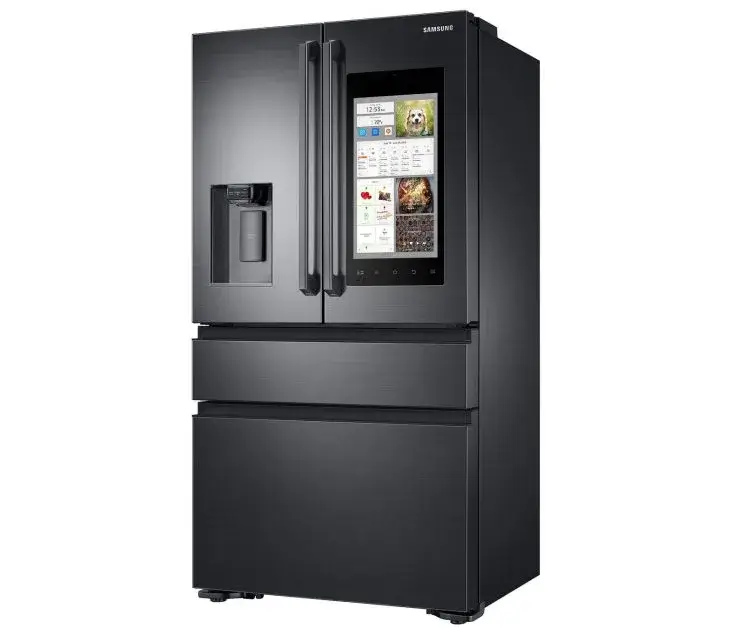

…or this one

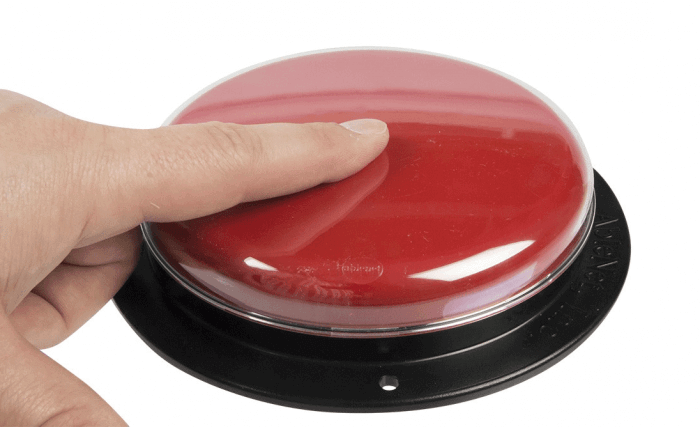

…or this one
Opens in a new window

The DOM API

How is it that our code can rise to meet all these wonderful devices? Via the DOM API!

Both 'DOM' and 'API' are acronyms that get thrown around a lot. Let's quickly make sure we all know what they mean.

An Application Programming Interface is a user interface, where the user is a person writing a computer script. It provides you information and functionality from the document or application that you're interacting with.

The Document Object Model is an API that represents an HTML (or XML) document as a traversable tree structure. The elements (and attributes, including text content) within that structure are referred to as 'nodes'.

The DOM API is how JavaScript (or any other scripting language that interfaces with your HTML) "thinks" about your document.

You know how in JavaScript, just about everything is an "object"?

var basicallyEverything = {
    property: "some value ",
    otherProp: "some otherVal ",
    someMethod (someParam) {
        return someParam + " some return value";
    }
};

And we access objects like this:

console.log(basicallyEverything.property +
  basicallyEverything.someMethod("whatever"))
// Outputs "some value whatever some return value"

Well, the Document Object Model is everything in an HTML page - not just the content, but all the properties of the elements as well - turned into an object like that. Try running this command in your browser console on any page:

console.log(window)

It outputs almost a thousand different properties, functions, and nested objects! Every element on every HTML page has their own properties.

Of course, you've accessing the DOM API since the first day you wrote

document.getElementById("myFirstId");

…or…

console.log(window.location.href);

But the DOM API isn't just for us to mess around with - it's there so our users can access and manipulate our content in whatever way they see fit.

When we add attributes to HTML elements, what we're really doing is adding more information to the DOM.

console.log(
  document
    .getElementById("myImage")
    .attributes
    .alt
    .textContent
);

There are different kinds of attribute values we can assign to DOM nodes.

native attributes

provided by the HTML spec, e.g. class, alt, target

data attributes

user-customizable

ARIA attributes

ARIA (Accessible Rich Internet Applications) provides contextual information about the purpose of things, along with if and how DOM nodes can update, and what happens when they do.

This is all a very fancy way to say: "if you add these special attributes to your code, assistive devices can understand it better".

<div aria‑label="I'm extra accessible!">Content</div>

WAI-ARIA

The WAI-ARIA specification allows us to supplement our HTML elements, widgets and document presentation by defining roles and properties for screenreader users.

This is especially important when updating content on the page without a location change or page refresh, which is a common practice when using modern front-end JavaScript frameworks, such as React, Vue and Angular.

When to use ARIA

1. There is visual information on the page that has no native text alternative format, or
2. There is a DOM node (including text) that can or does update without a page refresh being triggered, and
3. There is no native semantics or attribute available.

Visual information with no native text alternative format

What do we mean by this? Well, the obvious example of visual information is an image, but it has a native text alternative format - the alt attribute.

<button
  aria‑label="Close"
  onclick="myDialog.close()">X</button>

One instance of visual information not having a native text alternative is when we use symbols (including alphanumeric characters) to represent an available action that makes sense in a visual context (like a dialog), but may not make sense if the user just hears their screenreader say "x".

What ARIA attributes should I use?

You can find a pretty comprehensive list on MDN Opens in a new window, and we'll be doing a deep dive next week.

There are a lot, but you should know about the role attribute, which overrides or supplements native HTML semantics, and state attributes including aria‑live, aria‑expanded, and aria‑hidden (which differs from the native hidden attribute).

The ARIA spec has their own taxonomy, but for now let's say there are three categories:

role

Supplements or overrides native semantics

labelling attributes

Attributes like aria‑label, aria‑labelledby, or aria‑controls, can describe an element, or point to a relationship with another element.

state attributes

Attributes like aria‑live, aria‑expanded, or aria‑busy, can be updated with JavaScript to communicate the state of content.

That's enough on aria today - we'll be looking at it more over the next two weeks, so don't feel like you need to memorize the whole list Opens in a new window right now.

For the rest of today, let's take a step back and look the most basic element of accessibility: our static content.

Making content accessible

We can provide alternatives to this visual information (including information communicated through layout) with alt attributes for graphic content, scope and caption for tables, and labels or screen reader-specific content for inputs, buttons and links.

We must also keep in mind that our elements are often used as navigational landmarks for people using non-visual clients, including headers for document structure.

Text alternatives are provided when information is presented visually - this includes images, graphs, charts and tables, but also cases where elements have implicit functions based on the visual design, i.e. buttons within a form.

Refer back to our Week 1 "Component of the Week" Opens in a new window for a refresher on text alternatives.

Accessible text content means…

1. Unique page titles (as it can be difficult to assess if the page has actually changed otherwise)
2. Concise link text (as screen readers read them in their entirety)
3. Text-based information about link behaviour
4. Skippable navigation
5. Captions, transcriptions and other alternative text that provide an alternative to all relevant visual information
6. Verbose error messages (that capture focus), and
7. Using words rather than ASCII symbols

Page titles

The text in the <title> element in the head of your HTML document is the first content that is read out by a screen reader when they land on your page.

Page titles should be unique and descriptive. If it's page 2 of 3, say so.

Headings

Heading elements (<h1>, <h2>, etc.) are important tools used for page navigation when using assistive technologies.

Headings should structure your document. Think of the way your information is structured - it's very rarely appropriate to have just an h1 and then p tags all the way down. Headings should provide meaning and context.

It can be tempting to use heading elements for their style attributes. That's all well and good until you start breaking semantics. Use CSS to style headings however you like, but maintain your document's structure.

h1
- h2
-- h3
-- h3
- h2
-- h3
--- h4
-- h3

Alt text

Alternative text should be your best effort to convey all of the relevant information in the image - no more, no less. This gets tricky when you get into things like graphs, but remember what we talked about when the image was our "Component of the Week" - alternative text should describe the meaning the user is meant to take away.

Transcripts and captions

Audio and video need transcriptions and/or captions. Keep an ear out for sounds that convey relevant information, and make sure they're included - not just the words.

Beware things that look like text

Be on the lookout for images with embedded text, or worse - OCR-resistant PDFs.

ASCII

Think about what this sounds like: ¯\_(ツ)_/¯.

For the same reason, write "16 to 17 years old" instead of "16-17 years old".

Links

1. Don't say they're links - the screenreader tells you
2. Don't capitalize - screenreaders will read them out letter by letter
3. Don't make the link text the url
4. Keep link text short - screenreaders won't skip them.
5. Identify link behaviour - i.e. downloads, new windows, anchor links
6. Don't embed link type identifications in your CSS with pseudo-elements or icons - they're not accessible to screen readers.
7. Don't abuse JavaScript to do link-ish things with elements that aren't links (links meaning anchors or area tags)
8. If an image is inside an anchor tag, it's alt text should refer to the link behaviour, as well as the image's information.
9. Empty or broken links are just not ok.

Via sitepoint

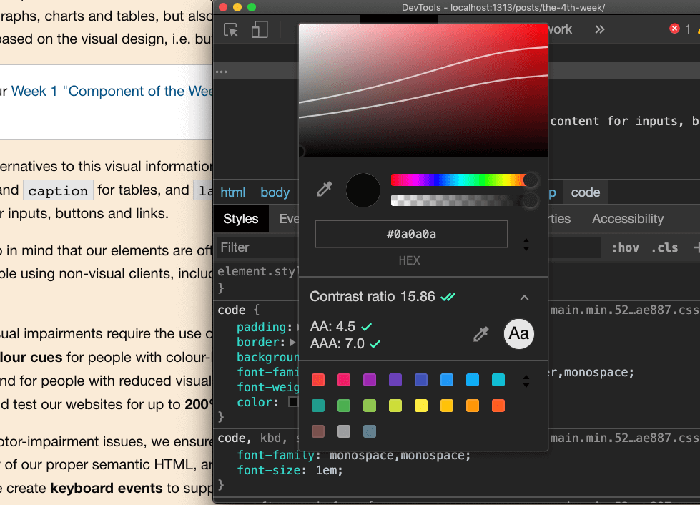

Because not all visual impairments require the use of a screenreader, we provide alternatives to colour cues for people with colour-blindness (i.e. focus outline, proper labelling), and for people with reduced visual abilities we check our colour contrast ratios and test our websites for up to 400% zoom.

Semantic HTML

Accessible documents are traversable - you can move through them with the keyboard or a scripting language the same way (and in the same order) you move through them with your eyes.

Semantics in HTML refers to using native elements and attributes for their defined purpose.

A correct source order means that the visual flow of the document matches the source code.

Showing & hiding

See the Pen Hiding Techniques by Simon Borer (@simonborer) on CodePen.

Skip Links

Hiding things, and then showing them on focus comes in handy for the (WCAG required) navigation skip link.

Focus-ability and tab order

tabindex is an attribute that specifies focus-ability. Focus is usually stepped through with the tab key, hence the name.

tabindex="-1" is focusable, but not sequentially. As in, you can`t tab to it.

tabindex="0" means that the element is focusable in the normal tab sequence.

tabindex="1", or any other positive value, means that this element takes precedence over any other element without a declared tabindex. If you are using this, that's a bad sign.

Remember not to confuse the visual order with the DOM order!

Declaring a tabindex value can affect scrolling behaviour on child elements Opens in a new window.

For people with motor-impairment issues, we ensure that we do not disable the native functionality of our proper semantic HTML, and where native functionality is not available, we create keyboard events to supplement our click events.

We also maintain our tab order by having our source order properly represented.

On those rare occasions where our visual order and source order are in conflict, we can control focus with JavaScript.

Where we want to make an element focusable that does not have native focus-ability, we can use the tabindex='0' attribute value.

Mobile/touchscreens

Of course we keep in mind that all these standards apply whether on a desktop or mobile device, with a few special considerations for mobile, including…

1. Maintaining keyboard functionality
2. Supporting different orientations
3. Touch target size and spacing
4. Gesture alternatives, and
5. Appropriate virtual keyboard data types.

Accessibility workflow

In other words, you are not alone. Making good content is a team effort. You can't make a site accessible by yourself. But they can't do it without you either.

TEST

I can't emphasize enough how important it is to test. That's why there are QA departments. It is wonderful to follow best practices, but even when specification documentation is perfect (it's not), and even when you limit your scope to the latest versions of a few popular clients (don't), and even when your linters catch all the edge cases (they won't), you still makes mistakes.

Auditing

Over the next couple weeks we'll learn why accessibility auditing can never be fully automated, but today, we're going to look at two handy, light-weight tools for quickly checking to see if there are any obvious accessibility errors on a page.

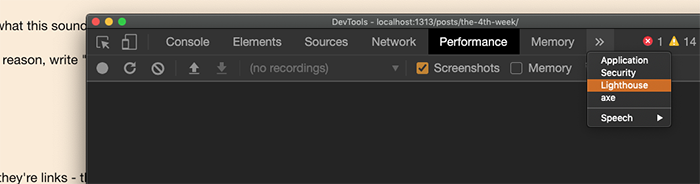

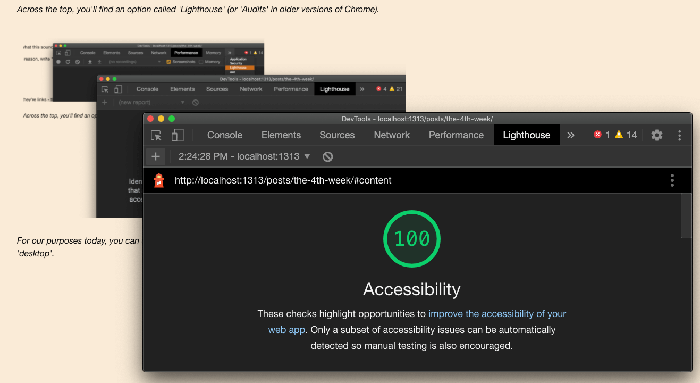

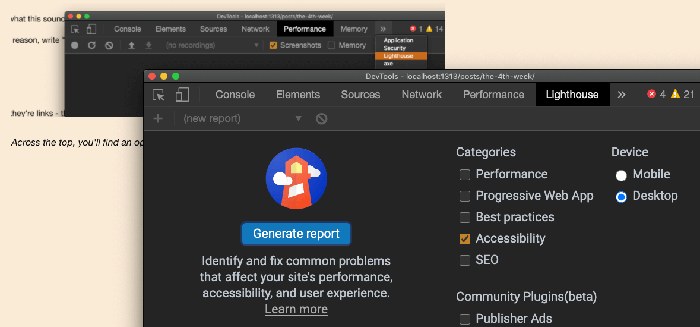

Open Chrome, and open the developer tools.

Lighthouse isn't the best Opens in a new window tool out there, though. Deque Opens in a new window is widely considered the industry leader in accessibility consulting. They built the open-source ruleset Opens in a new window that the Lighthouse accessibility audit and Microsoft's Accessibility Insights for Web are based on, and their own browser extension Opens in a new window is considered the best tool for automated auditing of single pages.

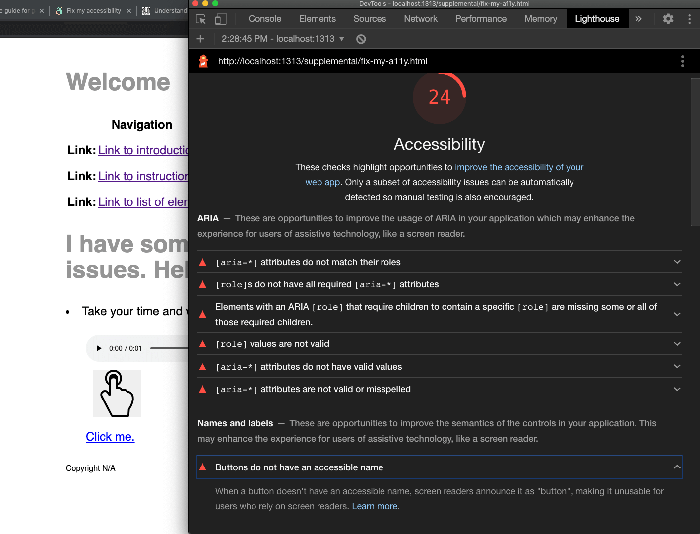

Let's try it out!

1. Download this HTML document Downloads a web page, or opens in a new window.
2. In VS Code, use the Live Server extension to serve the /fix-my-a11y.html file you just downloaded.

3. Now you should be able to access your files (via something like http://localhost:1337/fix-my-a11y.html), and run the aXe browser extension to diagnose errors.
4. Open the downloaded html document in a code editor, and alter the HTML until you've resolved all the errors.
